Carbide-tipped
The carbide-tipped circular saw blades can have different applications:
Carbide-tipped thin circular saw blades
These saw blades are made for precise and thin cutting of hardwood and semifinished products. It can be used on both mechanically and manually feed machines. The bodies of these blades are designed with 4 cooling slots.
| The angles in the figure are: | Clearance angle α = 15° |
| Sharpening angle β = 65° | |
| Rake angle δ = 10° |
|
Available dimensions:
| Product code | Product name | Diameter | Plate thickness | Blade thickness | Bore diameter | Teeth number |
| CMS297350 |
200*2,0/1,6 B30 Z64 MetaMotion info | 200 | 2,0 | 1,6 | 30 | 64 |
| CMS297854 | 250*2,0/1,6 B30 z80 MetaMotion info |
259 | 2,0 | 1,6 | 30 | 80 |
Carbide-tipped saw blades for portable machines
These can be used for resawing, cross cut and angled cuts of hardwood elements with manual feeding. The bodies of these blades are designed with 3 cooling slots.
| The angles in the figure are: | Clearance angle α=15° |
| Sharpening angle β= 65° | |
| Rake angle δ = 10° |
|
Available dimensions:
| Product code | Product name | Diameter | Plate thickness | Blade thickness | Bore diameter | Teeth number |
| CMS282382 | 180*2,8/1,8 B30 Z30 MetaMotioninfo | 180 | 2,8 | 1,8 | 30 | 30 |

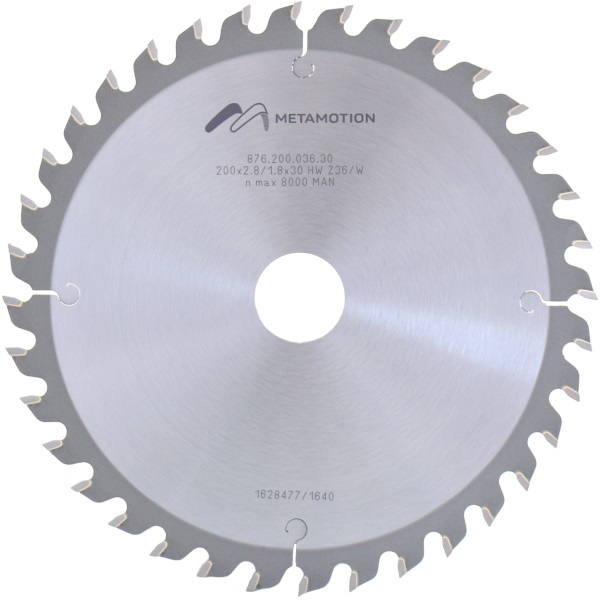

| CMS291548 | 200*2,8/1,8 B30 Z36 MetaMotioninfo | 200 | 2,8 | 1,8 | 30 | 36 |
Carbide-tipped circular saw blades for multiple blade machines
These circular saw blades are used on special machine tools that work with multiple blade equipated shafts. Working shafts are provided with three more blades, depending on the cutting pattern. The blades have two, four or six carbide-tipped scrapers, being designed for smoothing the side surfaces of the cut.
| The angles in the figure are: | Clearance angle α = 15° |
| Sharpening angle β = 55° | |
| Rake angle δ = 20° |
The front cutting edge is bent alternately left/right at an angle of 10°.
|
Available dimensions
| Product code | Product name | Diameter | Plate thickness | Blade thickness | Bore diameter | Teeth number | Blade number |
| CMS135446 | 220*3,5/2,5 B70 Z28 FOR + 2info | 220 | 3,5 | 2,5 | 70 | 28 | 2 |
| CMS275810 | 300*3,2/2,5 B70 Z24 MetaMotion 4info | 300 | 3,2 | 2,5 | 70 | 24 | 4 |
| CMS284013 | 350*3,5/2,5 B30 Z24 MetaMotion +6info | 350 | 3,5 | 2,5 | 30 | 24 | 6 |
| CMS275811 | 350*3,5/2,5 B70 Z24 MetaMotion 6info | 350 | 3,5 | 2,5 | 70 | 24 | 6 |
Carbide-tipped circular saw blades for longitudinal cutting
Carbide-tipped circular saw blades for longitudinal cutting are used for timber edging operations, splitting and cutting planks along fibers in semifinished products.
| The angles in the figure are: | Clearance angle α = 15° |
| Sharpening angle β = 55° | |
| Rake angle δ = 20° |
The front cutting edge is bent alternately left/right at an angle of 10°.
|
Available dimensions
| Product code | Product name | Diameter | Plate thickness | Blade thickness | Bore diameter | Teeth number |
| CMS027924 | 550*4,5/3,5 B30 Z44 FORinfo | 550 | 4,5 | 3,5 | 30 | 44 |
| CMS282396 | 250*3,2/2,2 B30 Z24 MetaMotioninfo | 250 | 3,2 | 2,2 | 30 | 24 |
| CMS282384 | 300*3,2/2,2 B30 Z24 MetaMotioninfo | 300 | 3,2 | 2,2 | 30 | 24 |
| CMS282397 | 300*3,2/2,2 B30 Z28 MetaMotioninfo | 300 | 3,2 | 2,2 | 30 | 28 |
| CMS272234 | 350*3,5/2,5 B30 Z28 MetaMotioninfo | 350 | 3,5 | 2,5 | 30 | 28 |
| CMS284975 | 400*3,5/2,5 B30 Z36 MetaMotioninfo | 400 | 3,5 | 2,5 | 30 | 36 |
| CMS275995 | 400*4,0/2,8 B30 Z32 MetaMotioninfo | 400 | 4 | 2,8 | 30 | 32 |
| CMS284976 | 450*4,0/2,8 B30 Z40 MetaMotioninfo | 450 | 4 | 2,8 | 30 | 40 |
| CMS284011 | 500*4,4/2,8 B30 Z44 metaMotioninfo | 500 | 4,4 | 2,8 | 30 | 44 |
Carbide-tipped circular saw blades for longitudinal cutting with chip limiters
Carbide-tipped circular saw blades for longitudinal cutting with chip limiters are used for lengthwise cutting of 70 mm thick soft coniferous/deciduous timber and of hard thick deciduous lumber. The bodies of these blades are designed with cooling sloots.
| The angles in the figure are: | Clearance angle α = 10° |
| Sharpening angle β = 60° | |
| Rake angle δ = 20° |
The front cutting edge is bent alternately left/right at an angle of 10°.
The chip limiter is with 0,4-0,5 mm shorter than the carbide tip.
|
Available dimensions:
| Product code | Product name | Diameter | Plate thickness | Blade thickness | Bore diameter | Teeth number |
| CMS137687 | 250*3,2/2,2 B30 Z24 FOR LIM ASCHIEinfo | 250 | 3,2 | 2,2 | 30 | 24 |
| CMS282383 | 250*3,2/2,2 B30 Z24 LIM MetaMotioninfo | 250 | 3,2 | 2,2 | 30 | 24 |
| CMS286965 | 300*3,2/2,2 B30 Z28 LIM MetaMotioninfo | 300 | 3,2 | 2,2 | 30 | 28 |
| CMS288096 | 400*3,5/2,5 B30 Z36 MetaMotion LIM ASCHIEinfo | 400 | 3,5 | 2,5 | 30 | 36 |
Universal carbide-tipped circular saw blades with alternative teeth
Carbide-tipped circular saw blades are tools with sintered carbide tips brazed on the rake faces of the teeth to increase the durability of the cutting edges.
These blades are used for narrow lengthwise or crosswise cuttings of 30 mm thick solid wood, chip boards or M.D.F. panels, processed individually or in packages.
| The angles in the figure are: | Clearance angle α = 10° |
| Sharpening angle β = 65° | |
| Rake angle δ = 15° |
The front cutting edge is bent alternately left / right at an angle of 15°.
|
Dimeniuni disponibile
| Product code | Product name | Diameter | Plate thickness | Blade thickness | Bore diameter | Teeth number |
| CMS005844 | 125*3,2/2,2 B30 Z24 FORinfo | 125 | 3,2 | 2,2 | 30 | 24 |
| CMS043466 | 150*2,5/1,6 B30 Z24 FORinfo | 150 | 2,5 | 1,6 | 30 | 24 |
| CMS022203 | 450*4,0/2,8 B30 Z64 FORinfo | 450 | 4,0 | 2,8 | 30 | 64 |
| CMS003182 | 500*4,0/3,0 B30 Z72 FORinfo | 500 | 4,0 | 3,0 | 30 | 72 |
| CMS288581 | 250*3,2/2,2 B30 Z40 MetaMotioninfo | 250 | 3,2 | 2,2 | 30 | 40 |

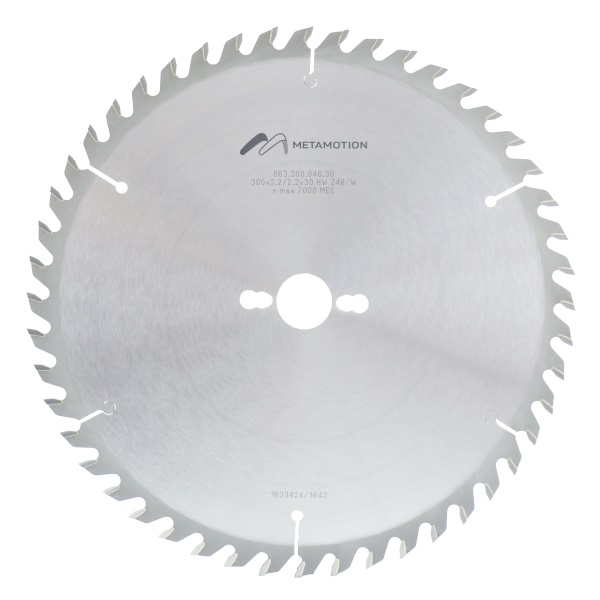

| CMS274760 | 300*3,2/2,2 B30 Z48 MetaMotioninfo | 300 | 3,2 | 2,2 | 30 | 48 |
| CMS288833 | 350*3,5/2,5 B30 Z54 MetaMotioninfo | 350 | 3,5 | 2,5 | 30 | 54 |
| CMS284010 | 400*3,5/2,5 B30 Z60 MetaMotioninfo | 400 | 3,5 | 2,5 | 30 | 60 |
| CMS291555 | 450*4,0/2,8 B30 Z66 MetaMotioninfo | 450 | 4 | 2,8 | 30 | 66 |
Carbide-tipped circular saw blades with alternative teeth for cutting solid wood, raw and coated chipboards and MDF panels
These circular blades are used for the cutting in desired forms of plywood, raw or veneer/plastic-coated chipboards or solid wood. Their use ensure a smooth final surface of the cut.
| The angles in the figure are: | Clearance angle α = 10° |
| Sharpening angle β = 65° | |
| Rake angle δ = 15° |
The front cutting edge is bent alternately left/right at an angle of 15°.
|
Available dimensions:
| Product code | Product name | Diameter | Plate thickness | Blade thickness | Bore diameter | Teeth number |
| CMS003286 | 250*3,2/2,2 B30 Z60 FORinfo | 250 | 3,2 | 2,2 | 30 | 60 |
| CMS020773 | 250*3,2/2,2 B30 Z80 FORinfo | 3,2 | 2,2 | 30 | 80 | |
| CMS003264 | 300*3,2/2,2 B30 Z96 FORinfo | 300 | 3,2 | 2,2 | 30 | 96 |
| CMS020775 | 350*3,5/2,5 B30 Z108 FORinfo | 350 | 3,5 | 2,5 | 30 | 108 |
| CMS297856 | 250*2,5/1,8 B30 Z80 MetaMotioninfo | 250 | 2,5 | 1,8 | 30 | 80 |
| CMS284992 | 300*3,2/2,2 B30 Z72 MetaMotioninfo | 300 | 3,2 | 2,2 | 30 | 72 |
| CMS295297 | 300*3,2/2,2 B30 Z96 MetaMotioninfo | 300 | 3,2 | 2,2 | 30 | 96 |
| CMS284006 | 350*3,5/2,5 B30 Z108 MetaMotioninfo | 350 | 3,5 | 2,5 | 30 | 108 |
| CMS282387 | 350*3,5/2,5 B30 Z72 MetaMotioninfo | 350 | 3,5 | 2,5 | 30 | 72 |
| CMS286966 | 400*3,5/2,5 B30 Z96 MetaMotioninfo | 400 | 3,5 | 2,5 | 30 | 96 |
| CMS284009 | 400*3,5/2,8 B30 Z120 MetaMotioninfo | 400 | 3,5 | 2,8 | 30 | 120 |
| CMS295306 | 450*4,4/3,2 B30 Z72 MetaMotioninfo | 450 | 4,4 | 3,2 | 30 | 72 |
| CMS295299 | 500*4,0/2,8 B30 Z72 MetaMotioninfo | 500 | 4 | 2,8 | 30 | 72 |
Carbide-tipped circular saw blades with conical teeth, for cutting laminated chipboards
These blades are used for the cutting of chipboards or M.D.F. panels, coated with decorative film layers. The final surface of the cut presents a high degree of smoothness.
| The angles in the figure are: | Clearance angle α = 10° |
| Sharpening angle β = 65° | |
| Rake angle δ = 15° |
The front cutting edge is on a concave shaped tooth alternated by another tooth that is shaped like an isosceles triangle with inclined sides at 30°.
Viewed in the direction of the radius, the rake surface appears to be conical. The distance on radius between the two tooth tops is of 0,2-0,3 mm, the triangular shaped one being taller.
|
Available dimensions:
| Product code | Product name | Diameter | Plate thickness | Blade thickness | Bore diameter | Teeth number |
| CMS027216 | 303*3,2/2,2 B30 Z60 FOR CONinfo | 303 | 3,2 | 2,2 | 30 | 60 |
Carbide-tipped circular saw blades with trapezoidal teeth
These circular saw blades are used for the cutting of chipboards, M.D.F. panels and solid wood in semifinished furniture products at the required final dimensions, as well as for the cutting of light metal profiles, tubes and pipes.
| The angles in the figure are: | Clearance angle α = 15° |
| Sharpening angle β = 60° | |
| Rake angle δ = 15° |
The front cutting edge is on a trapezoidal tooth (designed to split the material) alternated by a tooth with a straight front edge (designed to enlarge the cut).
|
Available dimensions:
| Product code | Product name | Diameter | Plate thickness | Blade thickness | Bore diameter | Teeth number |
| CMS022205 | 250*3,2/2,2 B30 Z60 FOR TPinfo | 250 | 3,2 | 2,2 | 30 | 60 |
| CMS009078 | 250*3,2/2,2 B30 Z80 FOR TPinfo | 250 | 3,2 | 2,2 | 30 | 80 |
| CMS009095 | 350*3,2/2,2 B30 Z104 FOR TPinfo | 350 | 3,2 | 2,2 | 30 | 104 |
| CMS057348 | 350*3,6/2,8 B30 Z96 FOR TPinfo | 350 | 3,6 | 2,8 | 30 | 96 |
| CMS297293 | 250*3,2/2,2 B30 Z60 MetaMotion TFinfo | 250 | 3,2 | 2,2 | 30 | 60 |
| CMS297294 | 300*3,2/2,2 B30 Z96 MetaMotion TFinfo | 300 | 3,2 | 2,2 | 30 | 96 |
