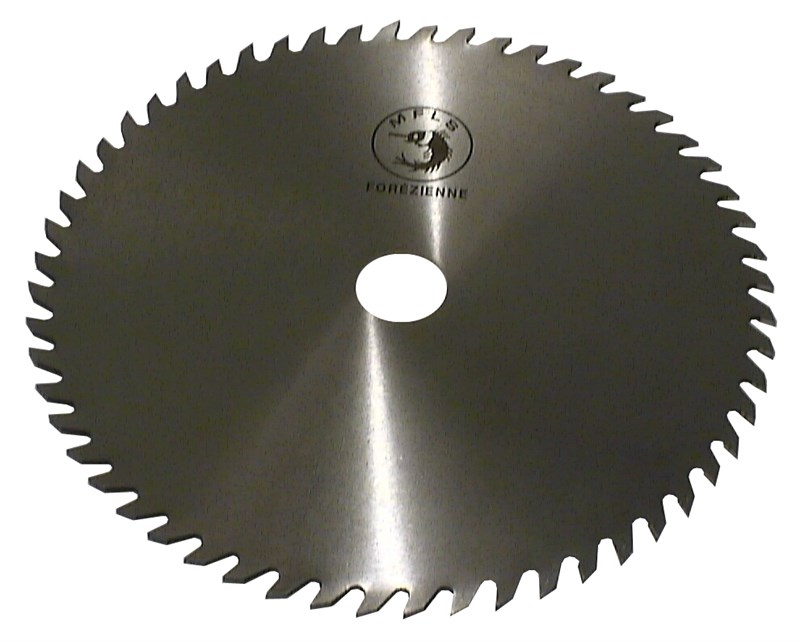

Monometallic circular saw blades

The cutting of wood with circular saw blades is performed on fixed table/mobile table saws or saws with mechanical feed.
These blades have KV type teeth and are mainly used for the cutting (spiltting and edging) of timber.
Monometallic circular saw blades are manufactured from a special alloy steel with the following chemical composition:

C	Mn	Si	Cr	V	P	S
0,8-0,9	0,3-0,45	max0,35	0,4-0,7	0,15-0,5	max 0,03	max 0,02

The maximum cutting speed is conditioned by the precision of the system, machine rigidity and critical rotation speed. The working speed must be 80 % of the critical speed.

Table: The outer diameter of the flanges depend on the diameter of the blade

Blade diameter(in mm)	Bore diameter(in mm)	Flange diameter(in mm)
250-500	30	100
550-700	40	125
800	40	165

Available dimensions

Product code	Product name	Diameter	Blade thickness	Bore diameter	Teeth number
MON057709	2502,0 B30 Z64 FOR info	250	2,0	30	64
MON003384	250*2,5 B30 Z56 FOR info	250	2,5	30	56
MON058764	3002,0 B30 Z48 FOR info	300	2,0	30	48
MON004030	550*3,0 B40 Z56 FOR info	550	3,0	40	56
MON003746	630*3,5 B40 Z56 FORinfo	630	3,5	40	56
MON003317	700*4,0 B40 Z56 FOR info	700	4,0	40	56
